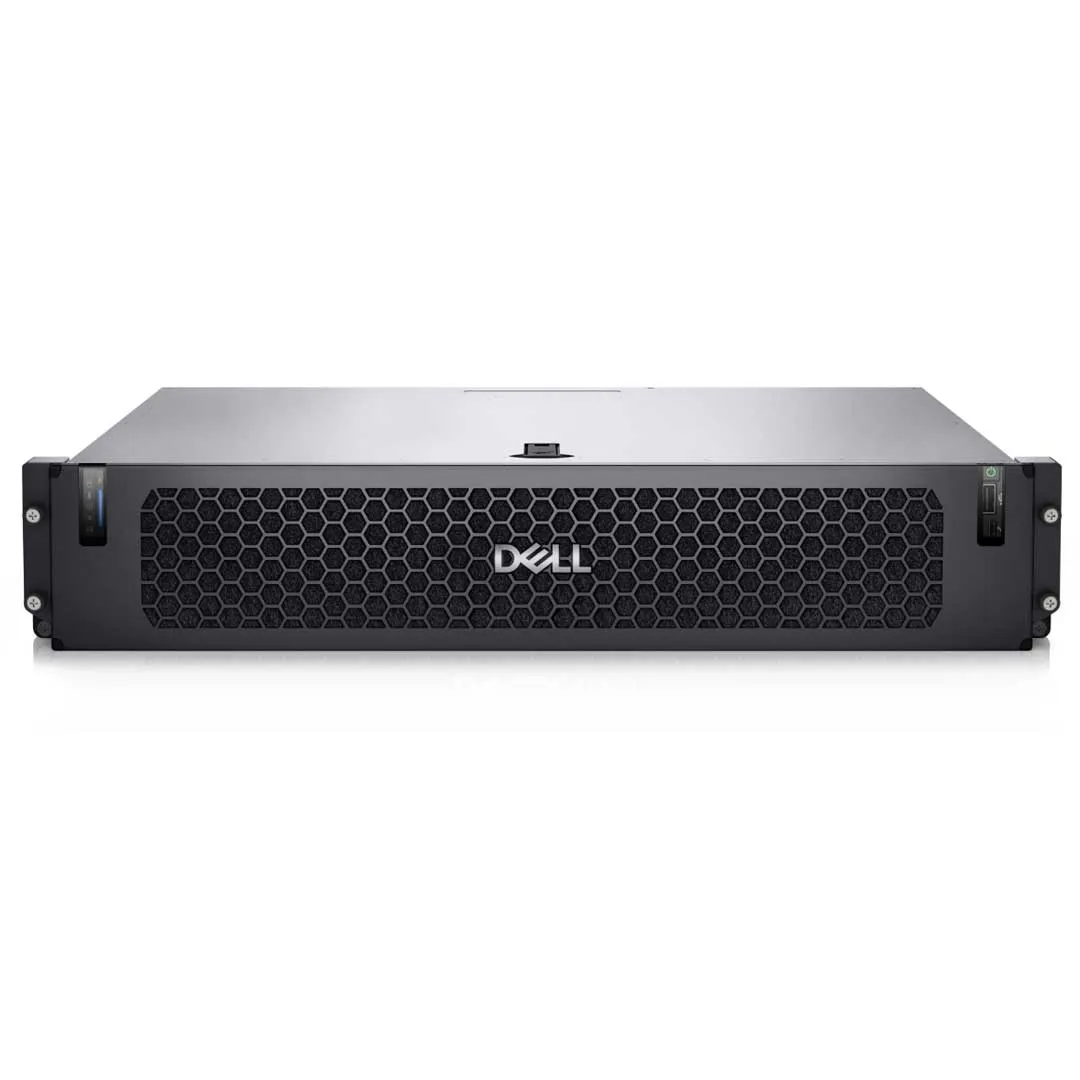

Expandable, ruggedized, and certified for conditions at the edge

The PowerEdge XR12 supports the rugged environment space for temperatures up to 55°C through custom configurations. These configurations are geared for the Telecom (or Telco) and Military industries and hence meet industry-specific standards in addition to the maximum temperature requirement of 55°C. The Telco configurations will be tested to the NEBS requirements outlined in the GR-63 and GR-1089 Telcordia specifications. The Military configurations will be tested to: MIL-STD-810H, MIL-DTL-901E and MIL-STD-461G.

This server has a unique piece called the MIL 901E and MIL 461G rugged kit. It has a few pieces that make this kit. From holders in the PCIe slots for half and full-height cards, a foam strip for the M.2 Boss card, a PSU Bracket along with a drive bracket that sits like a bezel just for the drives.

Please read the manuals below for more detailed information about the Dell PowerEdge XR12 Rugged Rack Server.

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
• Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
• Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

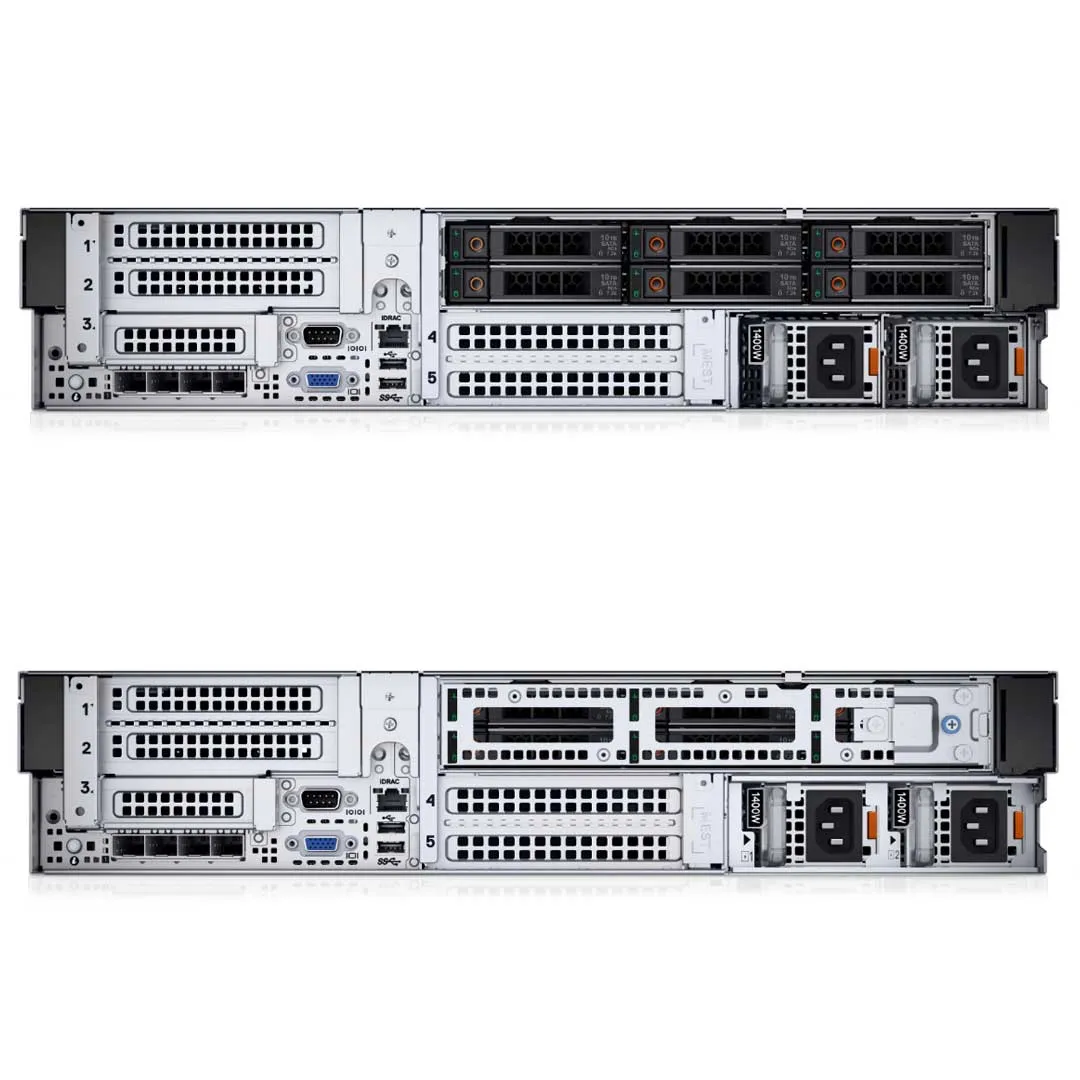

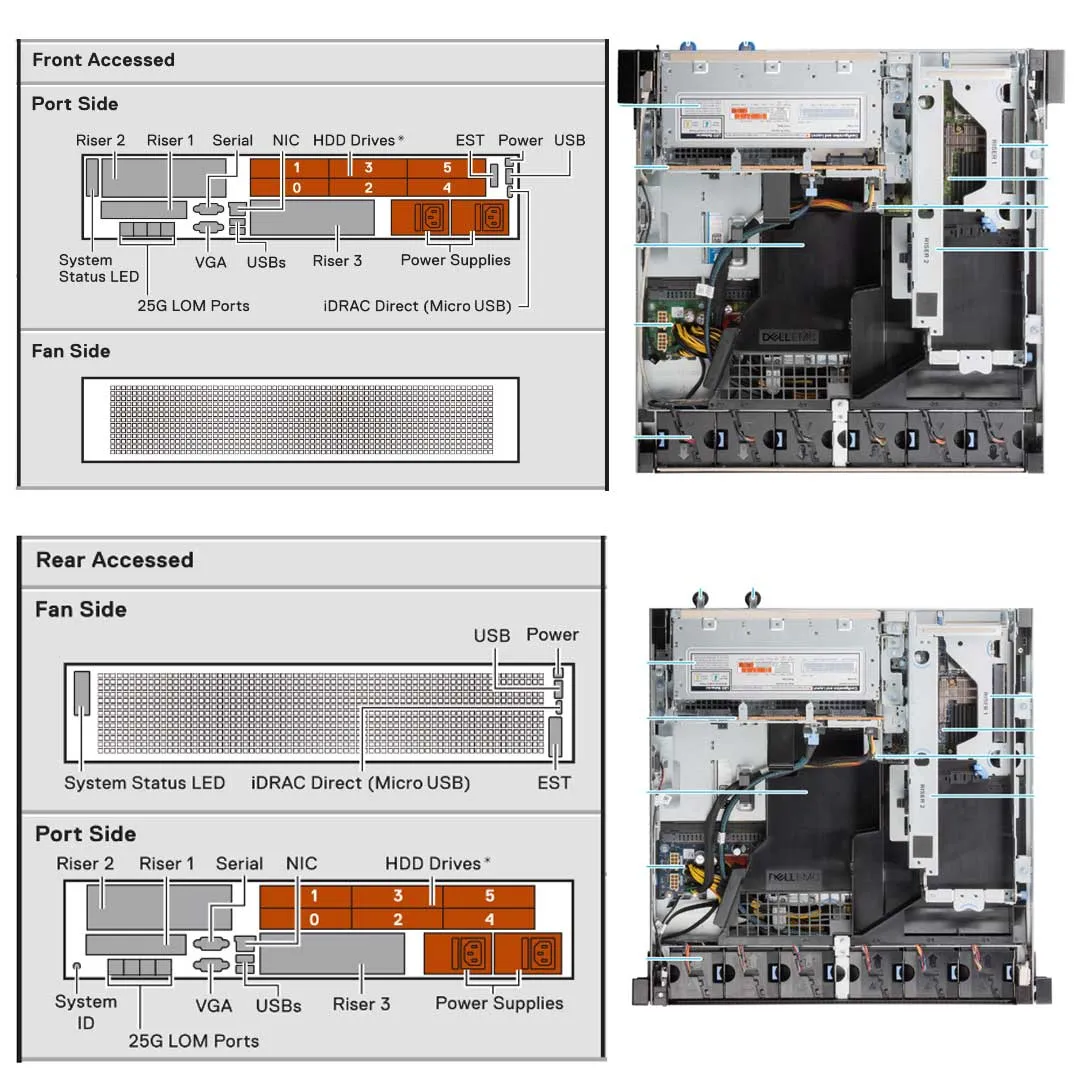

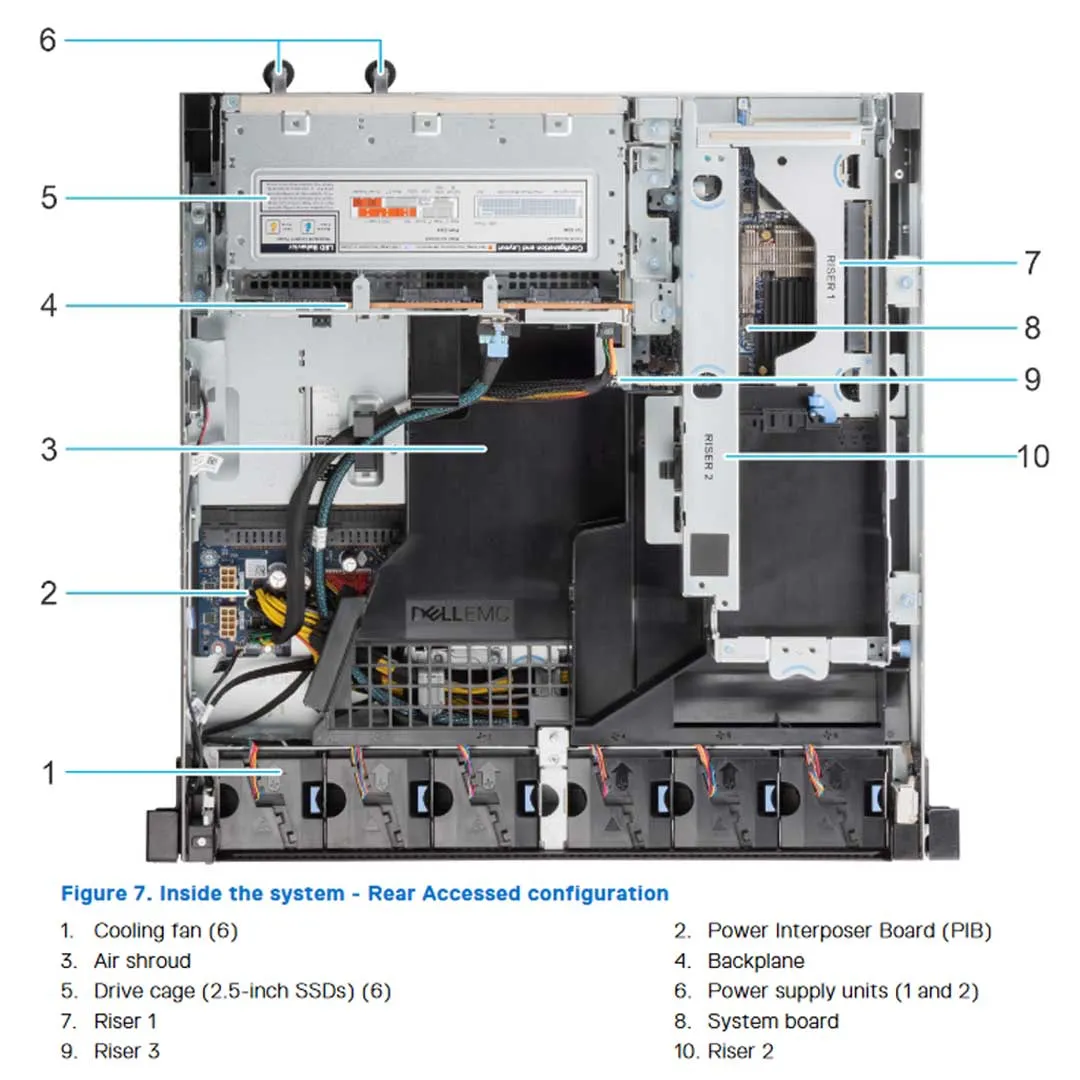

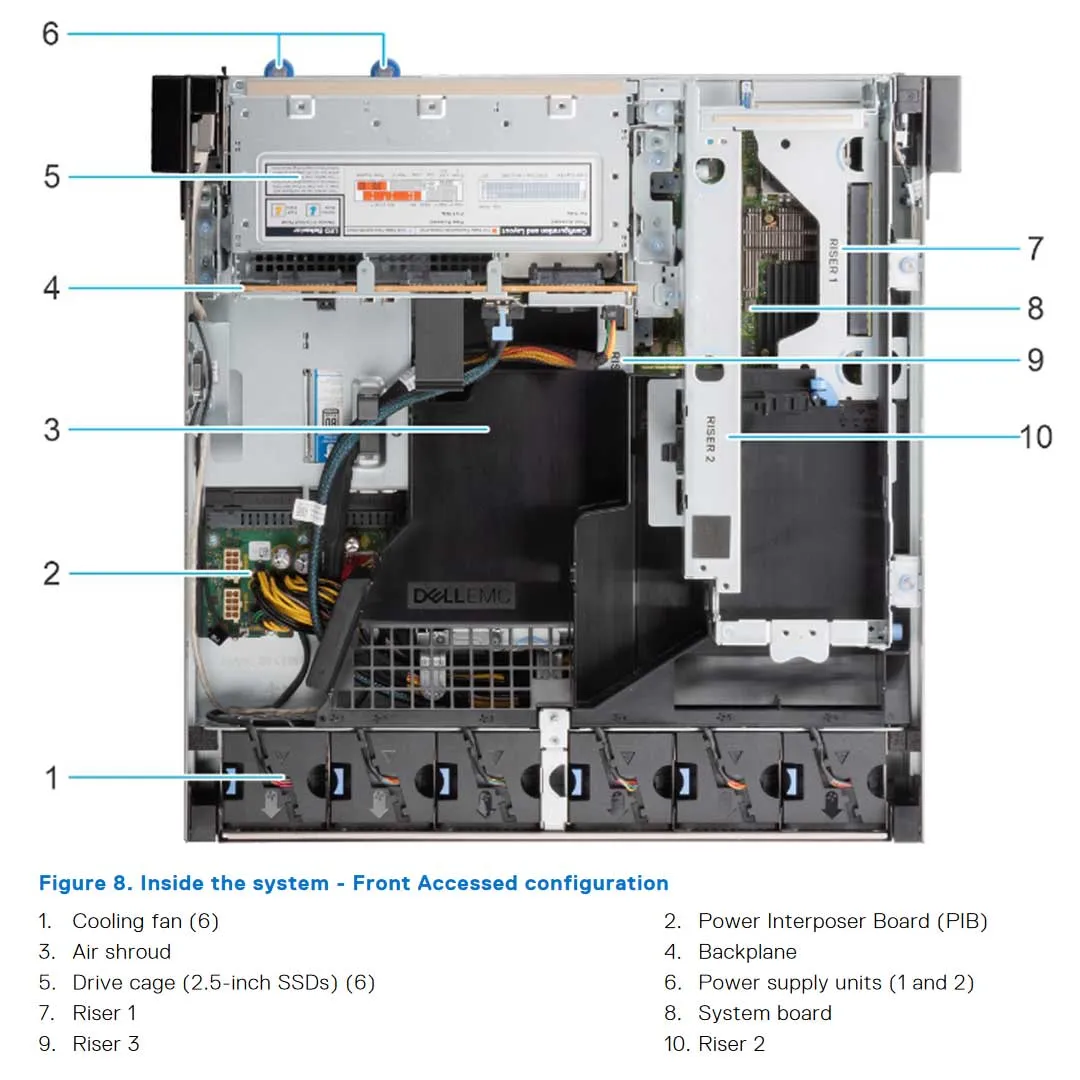

The XR12 only has one type of heat sink and must have all 6 High-Performance fans installed. The big difference is what access type you have picked. This front or rear access will determine where the fans are placed and what direction the fans go. If the Fans are in the front of the system (Rear Access). This means the air will be pushed into the system toward the back where the drives and PSU are. Likewise, the other options would have the fans installed in the rear of the system (Front Access). This means the fans will pull air from the front of the system to the back of the system.

Notes: The Dell XR12 systems can not be changed from a front access to a rear access. Please make sure you have the correct style you desire.

The PowerEdge XR12 system supports DDR4 registered DIMMs (RDIMMs), load reduced DIMMs (LRDIMMs) and Intel Optane PMem 200 Series. Mixing RDIMM and LRDIMM is not supported. Mixing of more than two memory module capacities in a system is not supported.
