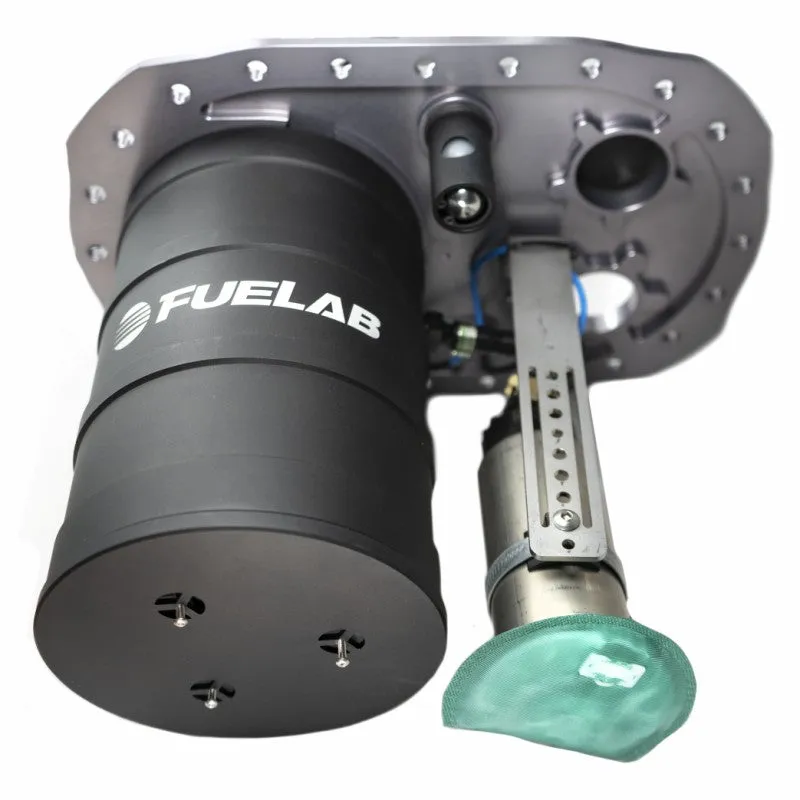

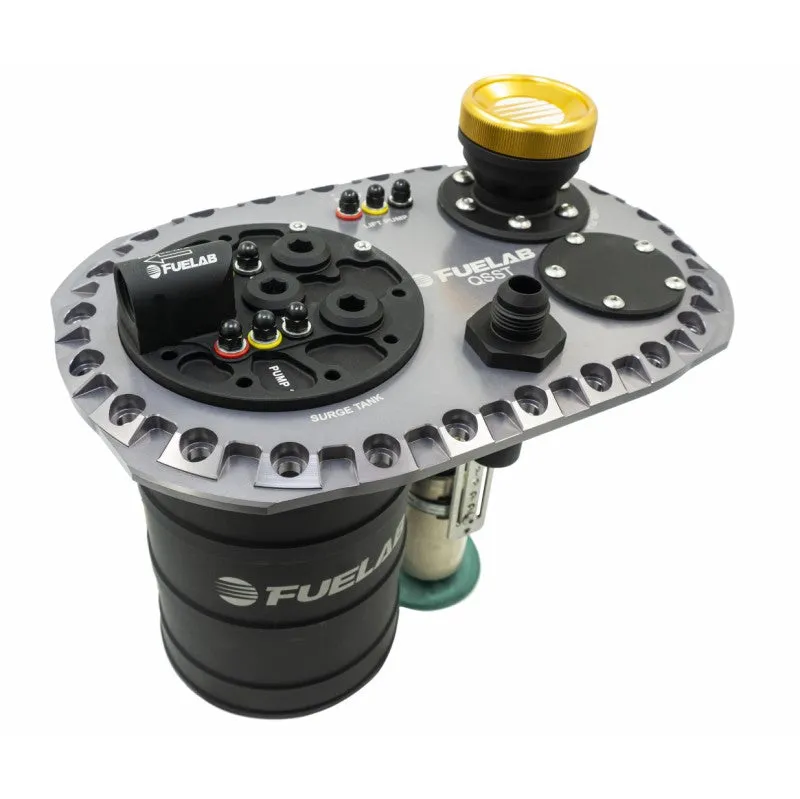

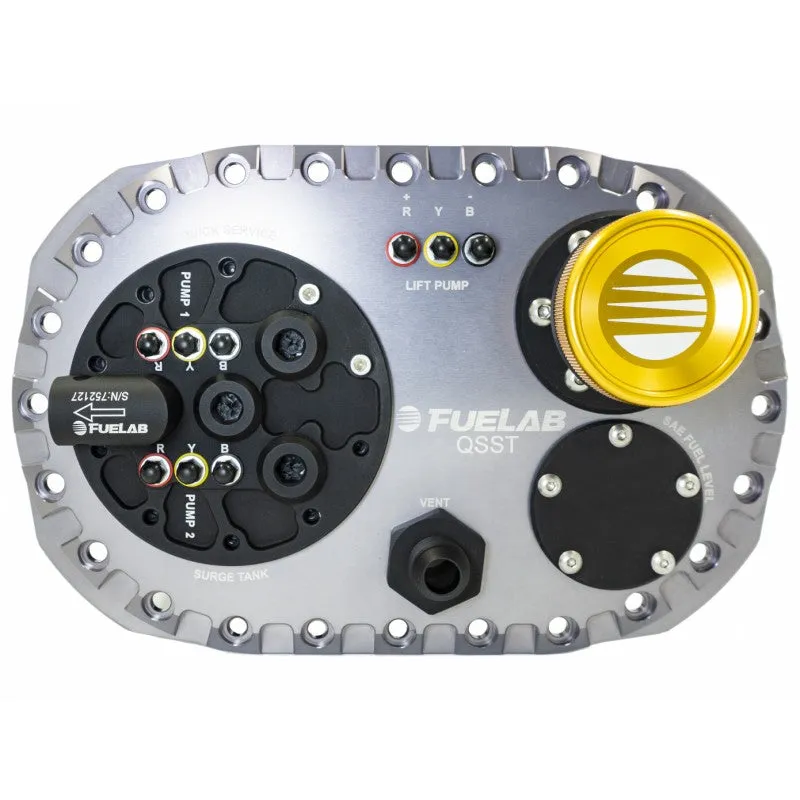

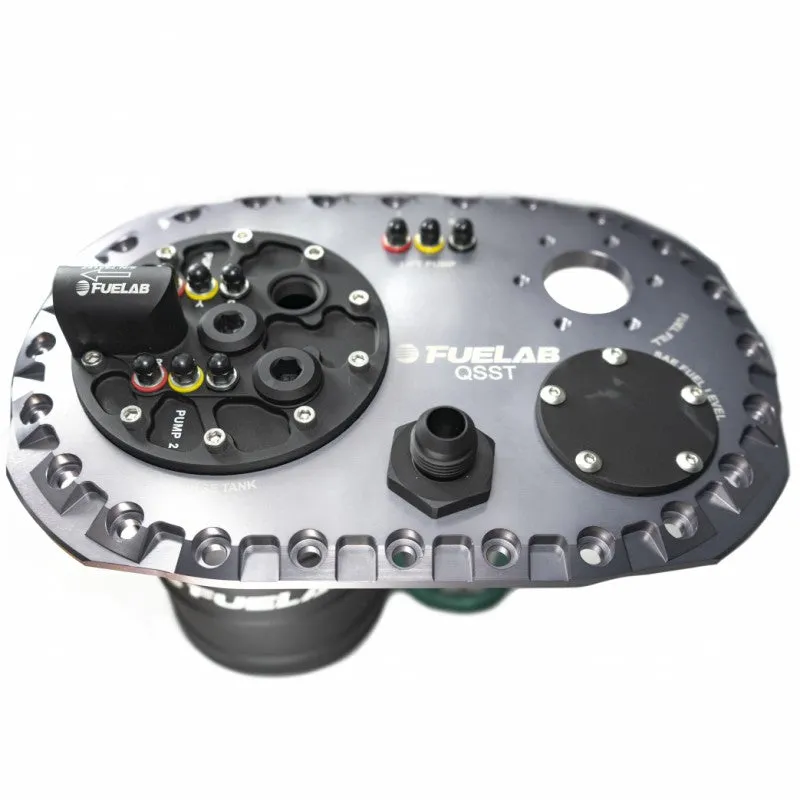

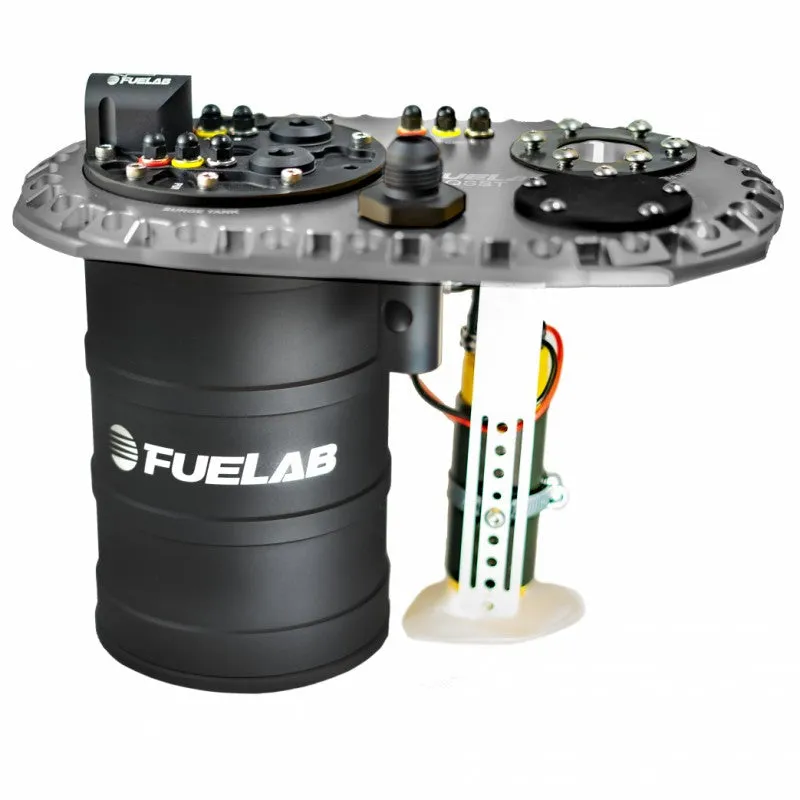

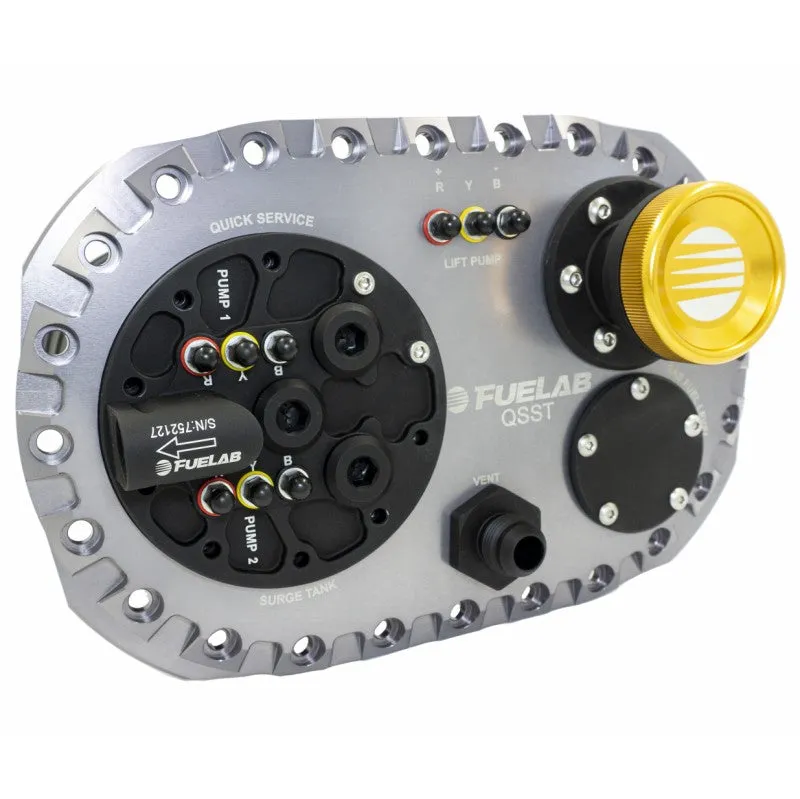

Titanium, Fuelab 49614 Lift, Twin Screw Brushless Pump 93903 500LPH (Up to 1300HP)
FEATURES:
- Quick Service Surge Tank for fast pump service
- Provides protection against fuel slosh from standard fuel cell pump hangers
- Fits the Industry Standard 24 Bolt fill plate bolt pattern
- Gasoline, Ethanol(E85), and Methanol compatible
- Rollover flap protection
- Brushed or Brushless Pump Options
- Fuel Tank Vent with Rollover Protection
- Gaskets and Hardware Included
- Stock with Empty Fill Neck Hole to give you Options
- Optional Remote Fuel Fill
- Optional Fuel Level Sensor
- Limited Lifetime Warranty!
WHAT MAKES OURS BETTER?
Our QSST (Quick Service Surge Tank) is exactly that. You can service your Surge Tank Pumps in minutes. With only 10 bolts on top, you can pull the Surge Tank Pump Hanger out of the top of the cell and service your pumps quickly! Whereas most competitors require you to pull the entire 24 bolt plate, then remove the surge tank housing from the bottom to finally access your pumps. Our unit is compatible with Brushed and Brushless pumps for both the Lift Pump and the Surge Tank Pump(s), or a combination of the two using the same Base Plate. Our base plate comes standard in two enticing anodized colors, Titanium and Gold.
Kit Inclues:
- FUELAB QSST Base plate and Surge Tank
- Fuel Tank Vent with Rollover Protection
- Lift pump Hanger with pump mount
- 3-Terminal for option of Brushed or Brushless Lift Pump
- Fuel Level Sender Blockoff Plate and Gasket
- Open Fuel Filler Hole for Customization (Gasket Included)
- Empty Dual Pump Fuel Surge Tank Hanger (Fits Brushed or Brushless Pumps)
- Corrugated fuel hose for lift pump into surge tank
- 1/4"-28 Hardware to mount to most fuel cell nut rings
Dont forget to add on your FUELAB Fuel Filler Kit, Fuel Level Sender, and your Fuel Cell Vent Kit!
